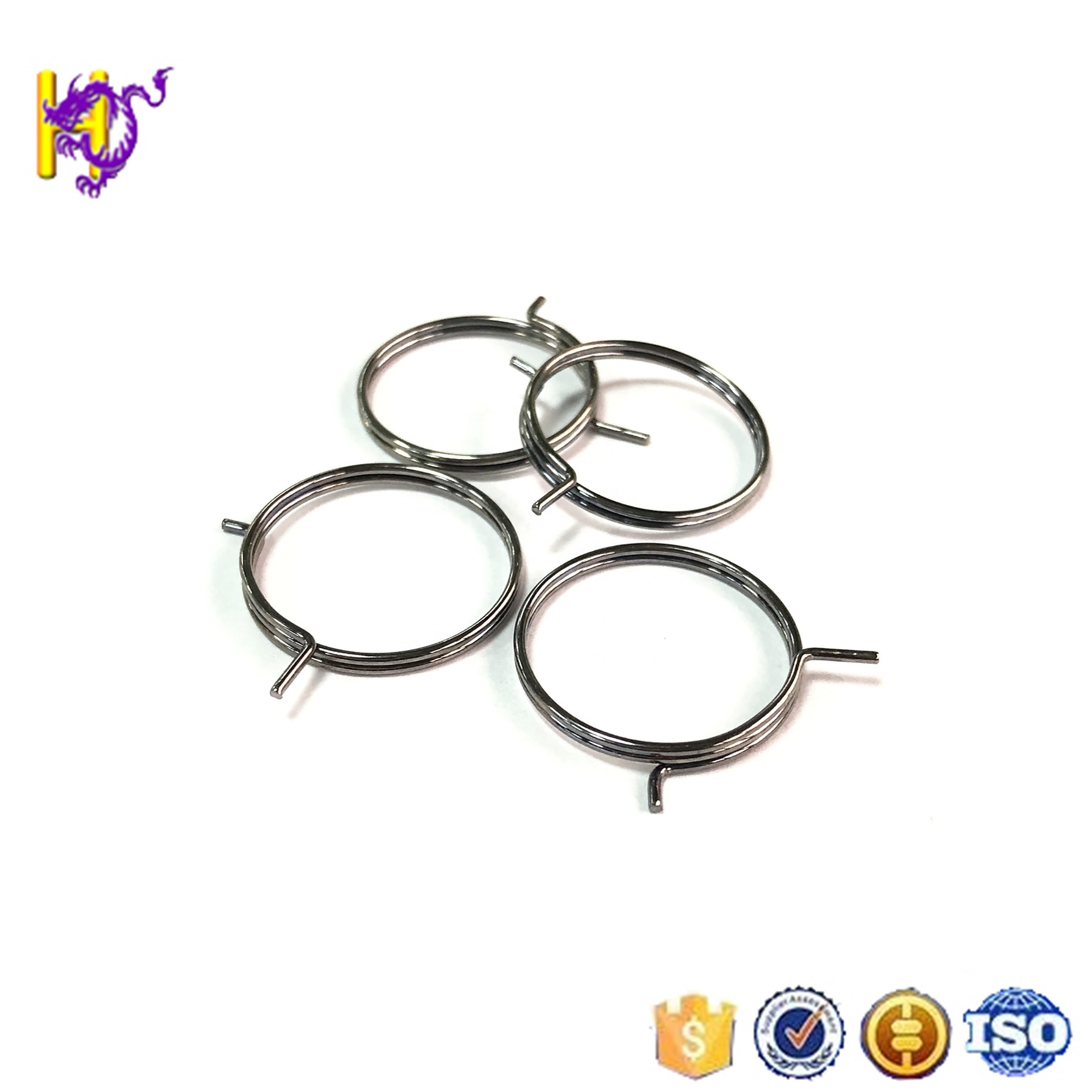

OEM Steel Small Clutch Torsion Spring Scroll With Zinc Plated

Product Categories

Dongguan Hezhi Hardware Co., Ltd.

Contact Now

OEM Steel Small Clutch Torsion Spring Scroll With Zinc Plated

Ask Lasest Price
Brand Name :	HEZHI
Model Number :	N/A
Certification :	Rohs&Reach
Price :	$0.1 - $0.5USD/ Piece/Pieces
Payment Terms :	T/T, L/C
Supply Ability :	10,000,000 Piece/Pieces per Month According to the order
Delivery Time :	7-15 work days

Add to Cart

Product Details
Company Profile

OEM Steel Small Clutch Torsion Spring Scroll With Zinc Plated

OEM Steel Small Torsion Scroll Spring /Clutch Spring With Zinc Plated

Description

Torsion Spring Introduction
A rotating spring is a type of helical spring that can store and release angular energy or statically fix a device by rotating a moment arm about the central axis of the spring body. Such springs are usually close-fitting, but the springs are spaced to reduce friction. They exert resistance to rotation or rotational forces. According to the application requirements, the design of torsion spring rotation (clockwise or counterclockwise), so as to determine the spring rotation

Performance Factor
Performance factors: spring stiffness, maximum deformation, maximum load and spin specifications.
Spring stiffness is the angular return torque per unit of angular displacement.
Maximum deformation refers to the maximum deformation of the spring before damage.
Torsion spring rotation is right, left and double.

Torsion Spring Production Process:
spring wire → spring winding → low temperature stress relief annealing → high temperature degreasing → washing → dilute hydrochloric acid washing → washing → electric galvanizing (80 min) → washing → blanking → dehydrogenation treatment (200 ℃, 4 h) → feeding → washing → color passivation → washing → drying → blanking → inspection

Material	Stainless Steel (SUS304,301.316,310,201,631, ect)
	Paino/Music Steel
	Carbon Steel or as your requirments
	Iron etc
Finished	Electroplating	Zinc ,Nickel ,copper ,black and so on
	Heating	In different tempurture
	Cleanning	Passivation,Clean,Rust-Proof
Process	CNC Machine
Application	It is widely used in computer, electronics, home appliances, cameras, instruments, doors, motorcycles, harvesters, automobiles, and other industries to control the movement of machine parts, ease impact or vibration, storage energy, measure the size of force and so on!
Wire dia Range	0.05-20mm
Design.	According to your drawing or sample
Packaging	PE Bag with Carton Box
Standard	JIS, DIN, ANSI, EN, etc.
Tolerance	0.05mm-0.1mm or as your requirement

Material	Type	Model number	Characteristic	Application
Stainless Steel (SUS)	With or without magnetism shine or nitrided surface, dark surface	201, 202 etc.	Less nickel plated, could not proceed salt spray test	General using craft and toys
		301, 302, 304, 310, 316, 321	High temperature resistance, can used in anti-acid, and-rust	Electronic part, home appliance, Locks, toys
		410, 420, 430 etc.	High strength	OEM aments and tableware products
		630, 631 etc.	High heat stability	Electrical application or product use under high temperature
Carbon Steel (SWC)	Low carbon steel, high carbon steel, nickel plated steel, Galvanized wire	55CrSi, 60SizMNA, 60SizCRVA	Good elasticity high hardness	Electronic part, home appliance, Locks, toys
Piano Steel (SWP)	N/A	SWP-A SWP-B	High tensile resistance Long worklife	Application for all kinds of small products
Copper Wire	Phosph or copper wire( C519R), Nickel plated copper, Bronze	N/A	Good conductivity of electrical	Electronics, electrical applicance
Iron	Galvanize iron wire	Customized or normal material	Soft material	Craft spring Decoration wire

Production Detail

OEM Steel Small Clutch Torsion Spring Scroll With Zinc Plated

Reference Drawing
